Machine Guarding Safety Checklist: OSHA Rules & Guard Types

Workers who operate and maintain machinery suffer roughly 18,000 amputations, lacerations, crushing injuries, and abrasions, plus more than 800 deaths, each year. About half of all workplace amputations occur in manufacturing.

OSHA 1910.212 sets the baseline general requirement for machine safety guarding. Machine guarding also remains on OSHA’s Top 10 most-cited standards year after year, making machine guarding safety a persistent compliance priority.

This article covers where machine guarding hazards occur, what OSHA requires, how to select the right guard type, what the 7-foot rule covers, and a three-phase inspection checklist you can run on the floor.

Main Takeaways

• Machine hazards concentrate in three zones: the point of operation, the power transmission apparatus, and other moving parts. Machinery guarding must address all three.
• OSHA 1910.212 requires guards that prevent contact, stay securely fastened, create no new hazards, protect from falling objects, and allow safe lubrication.
• Four guard types cover most applications: fixed, interlocked, adjustable, and self-adjusting. Selecting one without a risk assessment produces guards that get removed because they interfere with production.
• Under 1910.219, power-transmission components within 7 feet of the floor or working platform must be guarded. Measure from the walking surface, not the main floor.
• Machine guarding and lockout/tagout are inspected together. A missing guard often triggers a LOTO review, and documentation gaps in either one are common citation items.

Where Machine Hazards Occur and What OSHA Requires

Most machine-related injuries happen at three hazard zones: the point of operation, the power transmission apparatus, and other moving parts. OSHA’s general machine guarding standard, 29 CFR 1910.212, sets the baseline requirements for protecting workers at each one.

The Three Hazard Zones

• Point of operation. Where the machine performs work on the material, such as where a press cuts metal. This is where the highest share of guarding-related injuries occur.
• Power transmission apparatus. Where the machine transmits energy to motion: belts, pulleys, gears, shafts, couplings, and chains.
• Other moving parts. Every other part that moves, including flywheels, feed mechanisms, and cams.

Ingoing nip points are one of the most common machine guarding hazards in all three zones. A nip point is the place where two rotating parts converge, or where a rotating part meets a fixed one. These catch loose clothing, gloves, and hands faster than an operator can react.

Dangerous motions include rotating (movement in a circle), reciprocating (back and forth movement), and transversing (movement in a straight line). Dangerous actions include cutting (by rotating, reciprocating, or transverse motion), punching (when power is applied to one side, such as in stamping), shearing (powering a saw or knife to trim a side), and bending (when power is applied to draw or stamp metal).

What OSHA 1910.212 Requires

Under OSHA 1910.212, safeguards must:

• Keep workers from contacting moving parts
• Be firmly secured and not easily removable
• Provide protection so falling parts can’t fall into moving parts
• Permit safe, comfortable, and relatively easy operation of the machine
• Include a system for shutting down machinery before the safeguards are removed
• Create no new hazards that weren’t there before
• Allow for easy lubrication of moving parts

Machine guarding is an engineering control, one level below elimination and substitution in the hierarchy of controls and more reliable than administrative controls or PPE. Where a hazard can be designed out or automated away, that comes first; guarding protects against what remains.

Manufacturer-installed guards do not satisfy the employer’s obligation. Factory guarding may not meet current regulatory or consensus standards, and there is no exception for older equipment. Whether machinery is new, used, modified, or original, the employer is responsible for ensuring it is safe to operate.

When evaluating a guard, use AUTO: can a worker reach the hazard by going Around, Under, Through, or Over it? If any of the four is possible, the guard is inadequate regardless of how well it is built.

Enforcement and Penalty Exposure

Machine guarding (1910.212) logged 1,239 citations and lockout/tagout (1910.147) logged 2,177 in OSHA’s FY 2025 Top 10, ranking #10 and #4 respectively. Both remain chronic compliance gaps.

Maximum penalties currently reach $16,550 per serious violation and $165,514 per willful or repeat violation, unchanged for 2026.

OSHA’s National Emphasis Program on Amputations in Manufacturing Industries (CPL 03-00-027) took effect June 27, 2025 and runs five years, superseding the prior program. Two changes matter for manufacturers: an establishment can be removed from the programmed inspection list if it had an Amputations NEP inspection in the previous 24 months with no reported amputations, and a complaint-triggered inspection can only expand into a full NEP inspection if the facility’s NAICS code appears in Appendix B of the directive.

Understanding where hazards occur and what OSHA requires gives you the foundation for every downstream decision: which guard to select, what to train on, and what an inspector looks for first.

The 4 Types of Machine Guards and the 7-Foot Rule

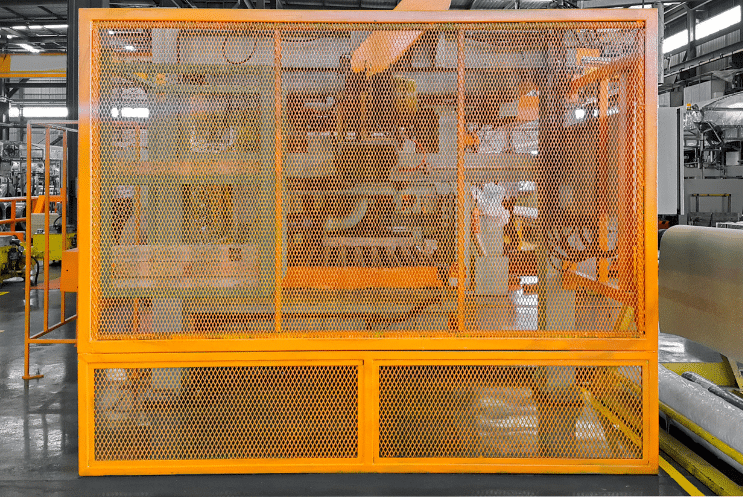

OSHA recognizes four primary types of safety guards for machines: fixed, interlocked, adjustable, and self-adjusting, each suited to different machine configurations. Selecting the right one starts with a risk assessment, not a catalog.

Choosing machine guarding equipment without a machine guarding assessment produces guards that get removed because they interfere with production. The comparison below matches each guard type to its best use case.

OSHA’s safeguarding categories also include devices (presence-sensing, pullback, restraint, safety controls, and gates) and location or distance methods, where hazards are reduced by locating the machine so the hazard is out of reach.

Guarding decisions change with automated and robotic equipment. Collaborative robots may rely on monitored standstill, speed-and-separation monitoring, or power and force limiting rather than physical barriers. ANSI/A3 R15.06-2025, published September 2025 as the US national adoption of ISO 10218-1 and 10218-2, replaced the 2012 edition and absorbed the ISO/TS 15066 human-robot contact force limits directly into the standard.

What Is the 7-Foot Rule for Machine Guarding?

Under 29 CFR 1910.219, any mechanical power-transmission component, including belts, pulleys, shafts, sprockets, chains, and gears, located 7 feet or less above the floor or working platform must be guarded. The same threshold applies to fan blades under 1910.212.

For example, a belt-and-pulley drive mounted at 6 feet 10 inches above a mezzanine platform must be enclosed or guarded, even if workers only pass underneath occasionally. The same drive above 7 feet with no platform access would not trigger the requirement.

Measure from the walking or working surface, not the main floor. Elevated platforms, catwalks, and maintenance ladders can bring transmission components within the threshold.

LOTO, Training, and the Machine Guarding Inspection Checklist

A machine guarding program holds together only when lockout/tagout procedures, operator training, and structured inspections work as a connected cycle rather than separate compliance tasks.

Lockout/Tagout Integration

Guards may be removed for servicing, maintenance, clearing jams, or changeover that exposes hazardous energy. Before any guard comes off, the machine must be de-energized and locked out under 29 CFR 1910.147, following the steps of lockout/tagout.

Machine guarding and LOTO are inspected together. A missing guard often triggers a LOTO review, and vice versa. LOTO also requires certified periodic inspections of energy-control procedures at least annually, and those inspections must be documented.

Training Requirements: What OSHA Mandates vs. What Auditors Expect

• A description of all hazards associated with any machine they work with
• Explanations of the safeguards, the hazards they guard against, and how they work
• How and why to use the safeguards
• How and when safeguards can be removed, and who can remove them
• What to do if a safeguard is found ineffective, damaged, or missing

Under 1910.147, authorized employees who apply locks and affected employees who work near locked-out equipment both require role-specific training. Retraining is required for new equipment, process changes, new job assignments, or when an inspection reveals procedural deviations. Records must show training dates, employee names, and the specific energy-control procedures covered.

Stronger programs follow three machine guarding safety tips beyond the mandate: annual refresher training rather than waiting for a trigger, machine-specific instruction tied to each guarding configuration, and competency verification through observed demonstration rather than sign-off sheets alone.

Where training assignments and retraining triggers span many machines and shifts, teams centralize records in a platform such as Vector LMS to keep documentation retrievable during an audit.

The Machine Guarding Inspection Checklist

A useful inspection splits into three phases: pre-operation checks run by the operator, periodic inspections led by EHS or a supervisor, and post-maintenance verification after any guard removal.

Pre-Operation (Operator, Each Shift)

• All guards are in place and securely fastened before startup.
• No visible cracks, dents, or deformation on guard surfaces.
• Interlocked guards trip correctly; the machine stops when the guard is opened.
• Adjustable and self-adjusting guards move freely and return to safe position.
• Emergency stop controls are accessible and functional.
• No tools, rags, or loose materials resting on or near guards.

Periodic Inspection (EHS or Supervisor, Monthly or Per Schedule)

• Guard mounting hardware is tight, with no missing bolts or fasteners.
• Guard openings comply with the applicable OSHA distance requirements for the hazard.
• Electrical interlocks and safety sensors are tested and documented.
• Power transmission guards are in place for all components within 7 feet of the floor or platform.
• Light curtains, presence-sensing devices, and two-hand controls function as designed.
• Guarding around new or modified equipment has been risk-assessed and documented.
• LOTO procedures match the current equipment configuration.
• Training records are current for all authorized and affected employees.

Post-Maintenance Verification (Maintenance or EHS, After Any Guard Removal)

• The guard was reinstalled before energy was restored.
• All fasteners are replaced, with no temporary fixes such as zip ties or wire.
• Interlock function is re-verified after reinstallation.
• LOTO clearance is documented and signed off.

Mechanical hazards to check for: evidence that safeguards have been tampered with or removed; unguarded gears, sprockets, pulleys, or flywheels; exposed belts or chain drives; exposed set screws, key ways, and collars; starting and stopping controls out of reach of the operator; lack of separate controls for multiple operators; and lack of safeguards for all hazardous moving parts, including auxiliary parts.

Nonmechanical hazards: lack of appropriate measures to protect against noise hazards, and lack of special guards, enclosures, or personal protective equipment.

Electrical hazards: loose conduit fittings, machinery that is not properly grounded, power supply that is not correctly fused and protected, and occasional minor shocks to employees during operations.

A completed checklist that exists only on a clipboard is hard to retrieve during an audit. Teams using mobile inspection tools such as Vector Check It complete checklists on the floor and sync findings to a central record.

Put Your Machine Guarding Program into Action with Vector Solutions

You now have a safety guarding framework covering where hazards occur, what OSHA requires, how to select the right guard, what the 7-foot rule covers, and how to run inspections across three phases.

Vector EHS Management and Vector Check It turn inspection checklists into mobile workflows that sync to a single audit-ready record, alongside hazard documentation and corrective action tracking.

Guards get verified on schedule, findings reach a central record instead of a clipboard, and the documentation is ready before an inspector asks.

FAQs About Machine Guarding

What Is the OSHA Standard for Machine Guarding?

OSHA 29 CFR 1910.212 requires one or more methods of machine guarding to protect operators and nearby employees from hazards such as rotating parts, flying chips, and sparks. Related standards cover mechanical power presses (1910.217) and power-transmission apparatus (1910.219).

What Are the 4 Types of Machine Guards?

Fixed guards are permanent barriers. Interlocked guards stop machine motion when opened. Adjustable guards are set manually for variable stock sizes. Self-adjusting guards adapt automatically to the material being fed. Fixed guards suit consistent operations; interlocked guards suit frequent access.

What Is the 7-Foot Rule for Machine Guarding?

Under 29 CFR 1910.219, mechanical power-transmission components including belts, pulleys, shafts, sprockets, chains, and gears located 7 feet or less above the floor or working platform must be guarded. Measure from the walking or working surface, not the main floor; platforms and catwalks can bring components within the threshold.

How Often Should Machine Guards Be Inspected?

Before each shift by the operator, monthly or on a set schedule by EHS or a supervisor, and immediately after any maintenance that required guard removal. Pre-operation checks confirm guards are present and interlocks work; periodic checks cover mounting hardware and documentation; post-maintenance checks verify reinstallation before energy is restored.

Do Manufacturer-Installed Guards Meet OSHA Requirements?

Not necessarily. Factory-installed guarding does not guarantee compliance with current regulatory or consensus standards, and older equipment is not exempt. Whether machinery is new, used, modified, or original, the employer is responsible for ensuring it is safe to operate and properly safeguarded.
