Chain Drive Basics

0.50 Hrs
SKU: RVCT-581

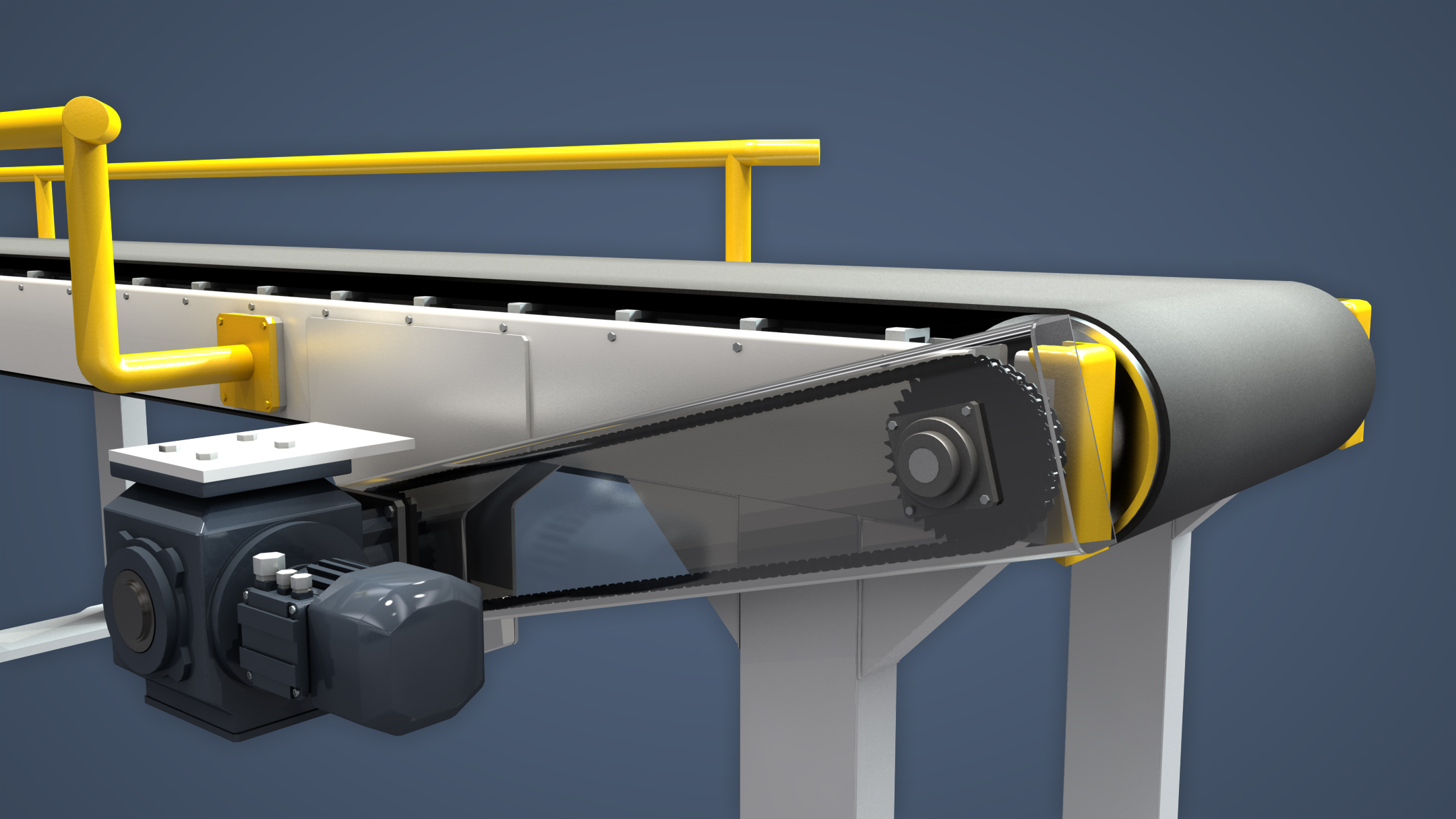

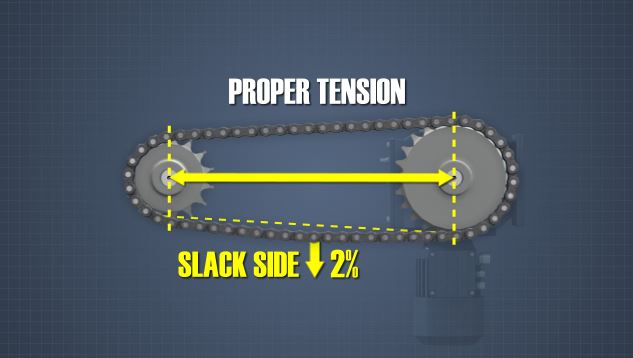

A chain drive is a system that includes two or more sprockets and a chain. One sprocket is driven, and its teeth mesh with the gaps in the links of the chain. When the sprocket is turned, it catches the chain, and transfers the force of the input to the rest of the system. The purpose of a chain drive is to transmit power from one place to another. This course covers the common components of chain drives as well as several procedures that can be performed to optimize chain drive performance.

Course Details | FAQ | Transcript
Get Training Now
Chain Drive Basics
Get Training Now

Course Details

Learning Objectives


• Describe the purpose of a chain drive system
• Identify the advantages and disadvantages of chain drives
• Identify and describe the components of a chain drive
• Describe sprocket ratios and pitch diameter
• Identify safety hazards and safety guidelines while performing chain drive adjustments
• Describe how to check for sprocket straightness, sprocket misalignment, and sprocket wear
• Describe the importance of chain lubrication
• Describe what to look for when inspecting for chain wear
• Explain how chain elongation occurs

Specs

Course Level
Intermediate
Languages
English
Compatibility
Audio, Video
Based on:
Industry Standards and Best Practices

Author | Vector Solutions

With over two decades of experience designing advanced 3D animated courseware and developing our proprietary learning management software, we pride ourselves by having developed over 1,000 safety and operations training modules, which have helped train over 250,000 workers worldwide. Our highly experienced team provides the industry with a simple and high-quality means of training their workforce. Whether your team consists of 25 people or an enterprise with thousands, we’re here to help.

Get Training Now

Frequently Asked Questions

What are the advantages of chain drives?

The advantages of chain drives compared to other drive systems include very little friction loss and slipping which leads to high efficiency as well as easy installation and reconfiguration to larger or smaller sprockets to vary sprocket ratios

What is the pitch of a chain?

The distance between the centers of the pins is called the pitch of a chain. All chains are manufactured to standardized two-digit chain pitch sizes

What is the sprocket ratio?

The sprocket ratio is the number of teeth on the driven sprocket divided by the number of teeth on the drive sprocket.

How is chain elongation measured?

Chain elongation can be measured by stretching the chain, and then measuring the distance of the inside and outside of rollers at both ends. With this measurement, chain elongation can be calculated by taking the difference of the measured length and the original length of the chain then dividing the difference by the original length.

Sample Video Transcript

A chain is a series of links held together with pins. The chain in a chain drive system is typically a metal roller chain. Roller chains consist of outer links called “pin links” placed on both sides of every roller link. These roller and pin links are then assembled in a loop and connected using a connecting, or master, link. This link typically has removable cotter pins which keep the master link in place. The distance between the centers of the pins is called the “pitch” of a chain. All chains are manufactured to standardized two-digit chain pitch sizes. The first digit indicates the pitch of the chain in eighths of an inch, and the second digit indicates the type of chain. When determining pitch size, the torque and RPM being acted on the shafts and sprockets must be taken into consideration. A higher torque and RPM requires a larger pitch.
