Contaminated Condensate Systems

In the process of cooking and breaking down wood to create individual fibers, the kraft pulping process generates some undesirable by-products. These by-products all have safety and environmental impacts. This module will focus primarily on the collection and treatment of contaminated condensate streams.

Request a demo

Course Details

Learning Objectives

• State the purpose of a contaminated condensate system
• List some of the chemicals which can contaminate condensate
• List the locations where contaminated condensate should be collected
• List two techniques for treating contaminated condensate
• Describe the flows and operation of a steam stripping column
• Define “condensate segregation”
• Describe the benefits of segregating condensate collection
• Identify and describe the safety hazards associated with some of the chemicals found in contaminated condensate

Specs

Course Level Intermediate
Languages English, Portuguese
Compatibility Audio, Video
Based on: Industry Standards and Best Practices

Author

Vector Solutions

With over two decades of experience designing advanced 3D animated courseware and developing our proprietary learning management software, we pride ourselves by having developed over 1,000 safety and operations training modules, which have helped train over 250,000 workers worldwide. Our highly experienced team provides the industry with a simple and high-quality means of training their workforce. Whether your team consists of 25 people or an enterprise with thousands, we’re here to help.

Key Questions

Where are most of the compounds that contaminate condensate generated?
Most of the toxic compounds in contaminated condensate come from the chip digestion process.

How are volatile compounds separated from water in a stripping column?
Condensate is heated in a stripping columns and volatile compounds boil out of the mixture.

What happens to volatile compounds stripped from contaminated condensate.?
Stripper compounds are typically incinerated.

Is there an alternative method for treating contaminated condensate?
Instead of stripping and burning, contaminated condensate can be treated biologically in a wastewater treatment facility.

What does segregating condensate refer to?
Segregating refer to trying to capturing two streams, one with a high concentration of contaminants, and one relatively clean stream at the time of condensation.

Sample Video Transcript

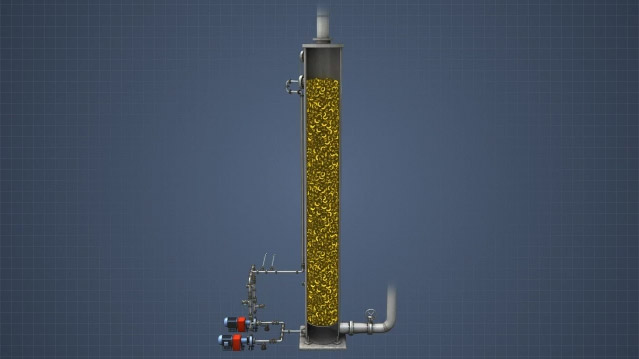

In a packed column stripper contaminated condensate is fed into the top of the column and flows down over the surfaces of the packing. Steam flows into the bottom of the tower providing both heat and a vapor flow. As the contaminated condensate flows down and the steam flows up the temperature of the condensate increases, which forces the organic components, which have a lower boiling point, out of the liquid and into the vapor phase.
