Conveyor Types and Components
Hundreds of conveyor types are used in manufacturing and industrial environments to move materials from one location to another. Conveyors can reduce workloads and make production more efficient. They can also prevent injuries that result from carrying materials manually. Different material handling systems require different conveyor types to move products or raw materials effectively. This module will discuss common components of conveyors as well as specific conveyor types and their uses.
Request a demoCourse Details
Learning Objectives
• Identify and describe the key common components of conveyors • Identify and describe roller, chute, wheel, belt, chain, slat, bucket, screw, vibrating, pneumatic, sortation, and portable conveyors • Describe the common uses of each conveyor type
Specs
| Course Level | Intermediate |
| Languages | English |
| Compatibility | Audio, Video |
| Based on: | Industry Standards and Best Practices |
Key Questions
What are some common components of conveyors
Common conveyor components include the frame, supports, the gearmotor, gear reducers, the take-up assembly, bearings, conveyor merges, drives, and pulleys.
What are some common types of conveyor drives

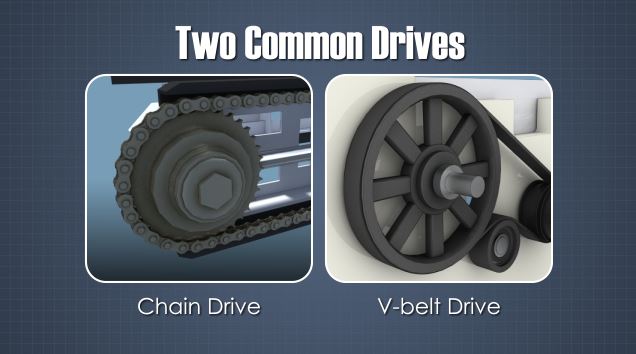

Common conveyor drive types include chain drives and V-belt drives. Advantages of chain drives include that they have no slippage, can carry heavy loads, and have a long life span. V-belts are designed to wedge into the sheave groove, which increases the force the belts produce in tension and, in turn, reduces the tension required to produce the equivalent torque.
What are some common types of pulleys on conveyors
Common types of pulleys on conveyors include drive or head pulleys, return idlers, snub pulleys, take-up pulleys, and tail pulleys.
What are some common types of conveyors
Common conveyor types include roller, chute, wheel, belt, chain, slat, bucket, screw, vibrating, pneumatic, sortation, and portable conveyors.
Sample Video Transcript

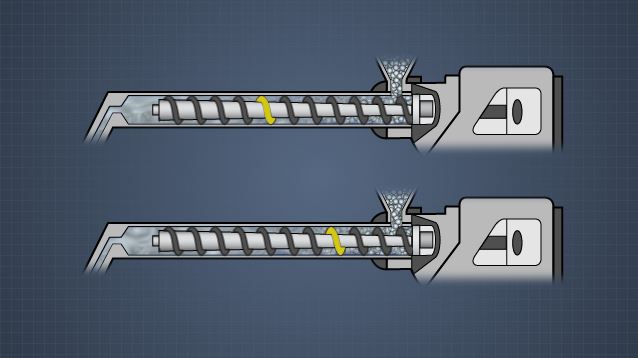

Screw conveyors use rotating screw-like augers to move liquid or granular materials out of a bin or within a tube. The screw is commonly referred to as a “flighting.” The flighting is typically set horizontally or with a slight incline. It is typically driven at one end, and can either wrap around a shaft or be shaftless. The faster the screw rotates, the faster the material will move from one location to its destination. They are useful in bulk handling industries, such as agriculture, for accumulation, drying, and moving material vertically.
