Equipment You’ll Find at a Typical Surface Mine


Surface Mining Equipment Names Image

The typical surface mine (quarry) has lots of specialized equipment, and each piece has a name that new miners may not be familiar with.

To help you get up to speed fast, we've provided a list of common surface mining equipment, along with images and explanations of the equipment's function and operation.

Not only did we write all the terms down for you below, but we're also presenting the same information in an interactive, multimedia glossary that you can download for free.

And we through in some tips if you need some MSHA Part 46 Surface Mining training. What's not to like about all of that?

All of the terms, definitions, and images in this article come from our online MSHA Part 46 "Typical Equipment in a Surface Mine" training course. We've included a short sample of that online mining safety course below.

Terms Used to Describe Physical Characteristics of a Surface Mine

We've got eight terms related to surface mines listed for you below. Please use the comments section below if you can think of others that new surface miners should know.


width= Image of a backhoe at a surface mine

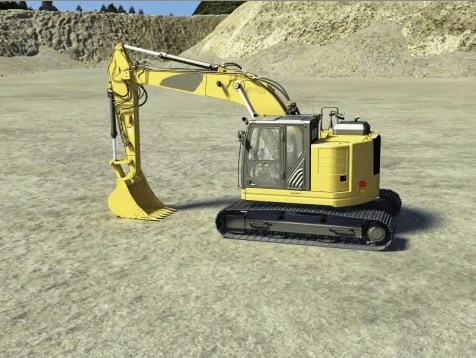

Either track-mounted or tire-mounted, backhoes are a type of excavator equipped with a bucket that faces toward itself. The typical backhoe design incorporates an inward-facing bucket affixed to an articulated arm, or "boom." Backhoes are often used for removing and loading overburden as well as scraping down high banks and digging ditches.

Bins, Hoppers, and Feeders

Image of bins and hoppers at a surface mine

Bins, hoppers, and feeders are types of equipment used to help regulate the flow of material through the mining process.

Bins and hoppers are containers with open tops for material to enter and an opening at the bottom for material to exit, typically over a conveyor or feeder. They are filled from the top by a loader or conveyor and discharge material at a continuous rate through the opening at the bottom for distribution to other processing and sorting operations.

Feeders transport material a short distance at a consistent rate using conveyor belts or screw conveyors. Feeders may also have an integrated breaker mechanism used to reduce material size as needed for the next processing stage.

Buildings and Other Structures

Image of buildings and other structures at a surface mine

Other physical elements of a mine include structures relevant to operational oversight and equipment maintenance.

Management offices, workshops, storage, refueling, and power generation may all be located on-site. In some cases, a control tower may also be constructed to offer a complete view of processing operations.


Image of Classifiers at a Surface Mine

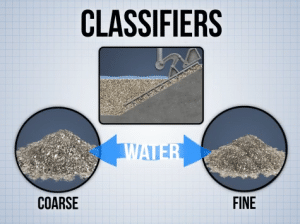

Classifiers are a type of sorting system used to separate coarse and fine particles from one another using water. They are typically located downstream of crushers and screens.

Some of the most common types of classifiers are spiral and rake classifiers. Both of these classifiers separate material by dragging the material along the bottom of an inclined surface in a settling chamber from the bottom (inlet) to the top (discharge).

Cone Crushers

Image of Cone Crushers at a Surface Mine

Cone crushers are typically used in downstream crushing operations for medium-sized materials. Like the jaw crusher, the material is fed into the cone crusher from the top and discharged at the bottom. As the material enters the crusher, an eccentrically rotating cone forces the materials against a crushing plate. The shape and movement of the cone progressively reduces the size of material as it moves down through the crushing chamber to the sizing gap above the discharge opening. Resized material may be further sorted and transported to stockpiles or other processing operations.


Image of Cranes at a Surface Mine

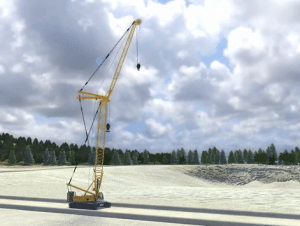

Cranes are a type of lifting equipment typically used to lift, place, and transport heavy items such as equipment, building materials, and mined material over short distances.

Although some cranes can be stationary, many are mobile units that may be tire-mounted, track-mounted, or truck- mounted.


Image of Dozer at a Surface Mine

Bulldozers, often referred to as "dozers," are track-mounted vehicles equipped with a wide, vertical front-mounted pusher blade that can be raised and lowered during operation.

Heavy, powerful, and extremely stable, dozers are typically used to clear land, push material short distances, do grade work, and manage stockpiles and work areas.


Image of Dragline at a Surface Mine

Draglines, a type of specialized excavation equipment, operate by casting a heavy cable-hung bucket outward from a crane-like boom and dragging the bucket toward itself to remove large amounts of overburden, load ore, and manage stockpiles. Draglines can be equipped with buckets of specific design and weight to match the materials being mined.


Image of a Dredge for surface mining

Dredges are a type of excavation equipment used to remove material from underwater. They can be land-based or barge-mounted and may employ powerful suction or physical digging methods to bring material to the surface for removal or processing.

Front-End Loaders

Image of a front-end loader at a surface mine

Front-end loaders, or simply "loaders," are large, typically tire-mounted vehicles with a deep, wide bucket mounted at the front. Loaders are used to load mined material into haul trucks and feeders, push or dump overburden, and manage stockpile or refuse areas. In sand and gravel operations, loaders may also be used for excavation.

Fuel Tanks

Image of Fuel Tanks at a Surface Mine

Surface mines require the constant operation of heavy equipment consuming large volumes of liquid fuel. Since much of this equipment is not designed to be driven on conventional roadways, refueling must be done on-site making fuel tanks and pumps a necessity. Tanks may be above or below ground and can range in size from 500 to many thousands of gallons.


Image of Generators at a Surface Mine

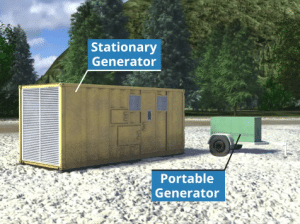

Both stationary and portable electrical generators commonly serve a wide range of power needs at a mine.

Haul Trucks

Image of Haul Truck at a Surface Mine

Haul trucks, or "haulers," are tire-mounted vehicles with a deep, wide hydraulically operated dump bed commonly used to transport and place large volumes of mined material from the pit to stockpiles.

Human Transport

Image of human transport/passenger vehicle at a surface mine

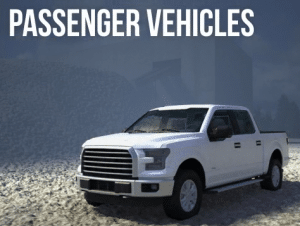

Active mining operations are often spread across a large area, making walking to distant locations impractical and potentially dangerous. Miners, contractors, and supervisors often need to move quickly between work areas to do their jobs, perform maintenance, and address issues as they arise. A broad range of common passenger vehicles and pickup trucks may share haulage roads to transport people, tools, and small equipment where they are needed.

In-Pit Conveyor Systems

Image of in-pit conveyor system at a surface mine

Belt conveyors are designed to carry bulk material on a wide belt that rotates around two or more pulleys. At least one of the pulleys are driven by a motor that powers the conveyor system.

In-pit belt conveyors are used to move material within a large, active mining pit area or from the pit to loading areas for further distribution within the mine. In-pit conveyors may also move mined material to portable crushing systems that reduce the size of larger rocks or minerals for easier transport.

Jaw Crushers

Image of a jaw crusher at a surface mine

Jaw crushers are often used early in the production process to prepare material for processing. Raw mined material enters the top of the machine where a moveable "jaw" opens and closes repeatedly to break the material against a fixed stationary plate. When the material has been reduced to a size small enough to pass through the opening below the jaws, it exits the crusher and may be further sorted for stockpiling or downstream processing.

Maintenance and Repair Shop

Image of a maintenance and repair shop at a surface mine

A range of mobile and stationary equipment may be in constant use at a mine, requiring dedicated space for maintenance, repair, parking, and vehicle storage.

Most mines will have a maintenance and repair shop onsite to store replacement parts, supplies, tools, and other specialized machinery while providing sufficient space to maintain and repair equipment.

Overland Conveyor Systems

Image of an overland conveyor system at a surface mine

Overland belt conveyors are used on mine sites where there is the need for continuous movement of high volumes of material over long distances, in some cases, several miles. This type of bulk material handling conveyor may be used to transport material from the pit to processing areas or loading areas for rail or barge transport.


Image of a scraper at a surface mine

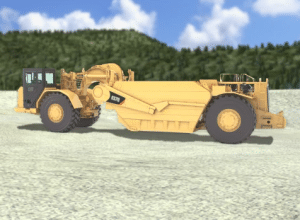

Scrapers are a type of earthmoving machine with an open, centrally mounted hopper or bowl with a blade-like leading edge that can be raised or lowered hydraulically to selectively remove and spread overburden over level or relatively level terrain.


Image of screens at a surface mine

Screens are a type of equipment used to separate particles into various sizes or "grades." In some cases, screens may also be used to differentiate between the wanted and unwanted materials.

Screw Conveyors

Image of a screw conveyor at a surface mine

Screw conveyors use a rotating, helical screw to move liquid or granular materials through a tube or trough. The screw is commonly referred to as a "flighting" and may either wrap in a spiral pattern around a central shaft or be "shaftless."


Image of a shovel at a surface mine

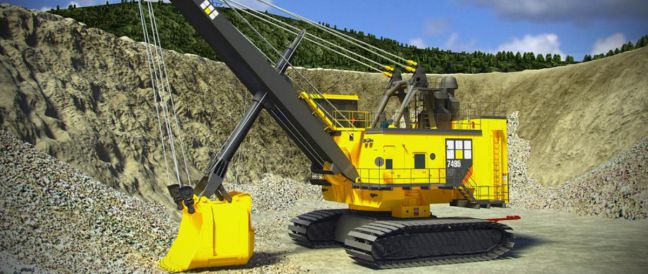

Shovels, sometimes called "power shovels," are versatile excavation machines, often track-mounted, with a large, outward-facing bucket at the end of a powerful, articulated boom that can rotate 360 degrees. Shovels are used primarily to dig out and remove overburden as well as selectively load material for transport.

Skid Steers

Image of a skid steer at a surface mine

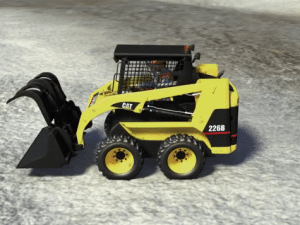

Often tire-mounted, skid steers are quick, compact, highly maneuverable, and extremely versatile machines which perform a broad range of vital duties throughout the mine. They may be used in excavation work to carry, spread, and load loose material as well as serve an array of grading, site preparation, construction, demolition, and repair functions.

Stationary Equipment and Structures

Stationary equipment at a surface mine typically performs hauling, processing, and other service functions. Structures provide offices, storage, and maintenance spaces.

The following stationary equipment and structures are common to most surface mining operations:

  • Conveyor systems
  • Feeders, bins, and hoppers
  • Crushers and screens
  • Classifiers
  • Water reclamation systems
  • Buildings and other structures

See images of stationary equipment throughout this article.

Track Haulage

Image of track haulage at a surface mine

Track haulage involves the loading and management of specially designed railroad cars to transport enormous volumes of overburden or mined material to other areas of the mine or off-site to distant locations.

Truck and Wheel Washes

Image of a truck and wheel wash at a surface mine

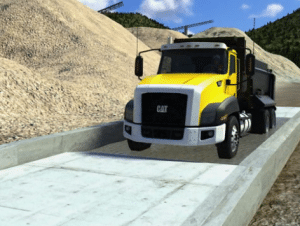

Truck and wheel washes are specialized areas or automated systems designed to remove obstructive dirt and mud buildup as well as dust and potentially hazardous particulates from mining equipment.

While a truck wash may serve to wash large vehicles, wheel washes are generally simple, drive-through baths along a drive path.

Truck Scales

Image of a truck scale at a surface mine

Since mining operations exist for the purpose of selling extracted and processed commodities, industrial truck scales are put in place to keep track of transported material volumes. Truck scales are normally situated on drive paths close to where over-the-road trucks exit the mine carrying processed material to customers.

Water Trucks

Image of a water truck at a surface mine

Water trucks are tanker trucks used to help suppress dust and other airborne particulate hazards by spraying water on haul roads, access roads, and common work areas.

Water Reclamation System

Image of a water reclamation system at a surface mine

Water reclamation systems remove fine sediments and return a high percentage of the used water back into the mining process. These systems may involve large settling tanks, mud presses, storm water discharge areas, and extensive piping and pumps to reduce runoff, manage environmental impact, and conserve resources.
